Tube Squaring Systems
Dc Powered Tube Squaring Machine
Sizes Available: Upto 1"/1.5"/2"/2.5" OD
Tube OD: (3/8''-2.5'')
Tube Thickness: 0.6-3(mm)
Power Supply: DC/ 1.1KW 50Hz/18V
N.W=3.5kg, G.W=9kg
Aluminum Suitcase for packing
Facing Tool
SS Clamp Collet
AC Powered Tube Squaring Machine
Tube OD: (1/2''-3'')
Tube Thickness: 0.6-3(mm)
Power Supply: DC/ 1.1KW 50Hz/18V
N.W=9.5kg, G.W=16kg
Aluminum Suitcase for packing
AC Powered Tube Squaring Machine
Tube OD:3~25.4mm (1/8''-1'')
Tube Thickness: 0.6-8(mm)
Power Supply: AC/ 1.1KW 50Hz/220V
N.W=4.5kg, G.W=11kg?
Aluminum Suitcase for packing?
AC Powered Tube Squaring Machine
Tube OD: 12.7~76.2mm(1/2''-3'')
Tube Thickness: 0.6-8(mm)
Power Supply: AC/ 1.1KW 50Hz/220V
N.W=9.5kg, G.W=16kg?
Aluminum Suitcase for packing?
AC Powered Tube Squaring Machine
Tube OD: 12.7~115mm (1/2''-4.5'')
Tube Thickness: 0.8-8(mm)
Power Supply: DC/ 1.1KW 50Hz/18V
N.W=16.5kg, G.W=25kg?
AC Powered Tube Squaring Machine
Tube OD: 12.7~115mm (1/2"-4.5")
Tube Thickness: 0.8-8(mm)
Power Supply: AC/ 1.1kw/1.1KW, 220v/50Hz
N.W=16.5kg
Aluminum case for packing
HP40

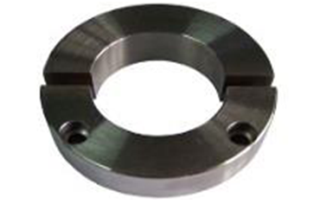

HP40 collets are made from aluminium alloy and are size specific
1 set required for each outside diameter
1 set = 2 pieces
Additionally the OSK 38/40 weld head collets are compatible for use with this tool
The use of OSK38/40 weld head collets enables the facing of microfit fittings to be completed

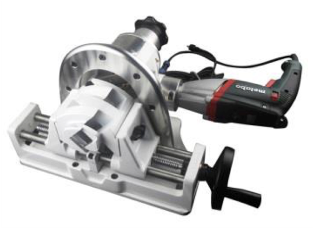

Planfix 115 Tube Squaring Tool
The Planfix 115 is a high-performance light weight tube squaring system with a high torque worm gear transmission and metabo drive unit.
Size range: 8 - 114.3mm OD
Requires one set Planfix 115 Collets for each tube size to be machined
Additionally the OSK115G weld head collets are compatible for use with this tool
See Planfix consumables for facing tool bits
Package includes:
* Tube squaring unit with fixed clamping mechanism
* Metabo drive unit (110VAC or 220VAC)
* Allen key set
* Operation manual
Features:
* Manual Feed with scale
* Wall thicknes: max. 3.0mm
* Weight: 12.5kg
Planfix 115, Item No. 1.2.4005
Transportation Case for Planfix 115, Item No. 1.2.4006
Technical Data:
Motor:
Single-phase a.c. motor
Power:
1010W
Input Voltage:
110VAC or 230VAC (50 - 60Hz)
Speed Range:
0 - 2600min-1 (drive unit)
Tube Squaring Tool Consumables
Orbitec manufacture facing tool bits from High Speed Steel.
For use with both the Planfix HP40 and Planfix 115 Squaring Systems
Other grades available on request
HSS Facing Tool Bits for Planfix, Item No. 1.3.4110
