Tube to Tubesheet
The RBK 16 can be used to weld tube to tube sheet joints with inside and outside fillets with flush fitted, recessed and protruding tubes. It can be used for welding inside diameters from 10mm to 78mm. The optional wire feed unit is integrated into the weld head and rotates with the torch assembly. Package includes: Requires mandrel and centring spindle (to suit tube hole diameter to be welded) and balancer(especially for vertical tube sheet applications) 6mtr cable assembly, item No 1.1.3505 (not included) Weld Head RBK 16 without Wire Feed, Item No. 1.1.3501
The RBK 16 can be used to weld tube to tube sheet joints with inside and outside fillets with flush fitted, recessed and protruding tubes. It can be used for welding inside diameters from 10mm to 78mm. The optional wire feed unit is integrated into the weld head and rotates with the torch assembly. Package includes: Requires mandrel and centring spindle (to suit tube hole diameter to be welded) and balancer(especially for vertical tube sheet applications) 6mtr cable assembly, item No 1.1.3505 (not included) Weld Head RBK 16 without Wire Feed, Item No. 1.1.3501

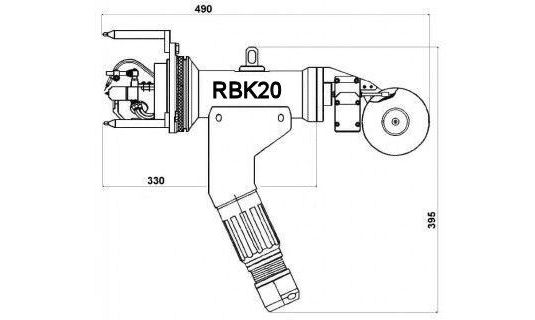

div class="headline">RBK20 Tube to Tubesheet Weld Head
The RBK 20 can be used to weld tube to tube sheet joints with inside and outside fillets with flush fitted, recessed and protruding tubes. It can be used for welding inside diameters from 10mm to 78mm. The optional wire feed unit is integrated into the weld head in a fixed position (does not rotate with the torch assembly). Package includes: Requires mandrel and centring spindle (to suit tube hole diameter to be welded) and balancer (especially for vertical tube sheet applications) 6mtr cable assembly, item No 1.1.3505 (not included) Weld Head RBK 20 without Wire Feed, Item No. 1.1.3503

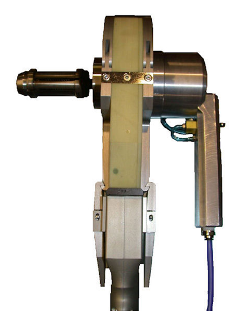

OSK4TK Tube ToTubesheet Fusion Weld Head
The OSK4TK weld head is a combination of the OSK65W enclosed water cooled weld head and the 4TK kit;
comprising electrode holder, nose ring and pneumatic mandrel actuating assembly.
This method of producing autogenous tube to tubesheet joints provides a high quality,
very clean weld and is particularly suited to Titanium applications because the entire weld
circumference is contained within a fully inert environment during welding.
This head can be used for tube diameters from 15.0mm to 50.0mm ID, a mandrel assembly is required to complete the package.
RBK16 Tube to Tubesheet Weld Head
Weld Head RBK 16 with Wire Feed, Item No. 1.1.3502
Technical Data:
RBK16
Welding Position:
Horizontal, Vertical
Speed Control:
Digital Encoder
Welding Current Range:
Maximum 200A
Rotation Speed:
Min: 0.33 RPM
Max: 6.00 RPM
Rotation Motor:
24VDC
Wire Feed Motor:
18VDC
Front Support:
Three Point Support included as standard
Torch Cooling:
Water cooled to electrode block
Transmission:
Current by Lamellar Coupling
Gas/Water by Rotary Coupling
Weight (with wire feed):
10kg
Weight (without wire feed):
8kg
RBK16 Tube to Tubesheet Weld Head
Weld Head RBK 16 with Wire Feed, Item No. 1.1.3502RBK20 Tube to Tubesheet Weld Head
Weld Head RBK 20 with Wire Feed, Item No. 1.1.3504
Technical Data:
RBK20
Welding Position:
Horizontal, Vertical
Speed Control:
Digital Encoder
Welding Current Range:
Maximum 200A
Rotation Speed:
Min: 0.33 RPM
Max: 6.00 RPM
Rotation Motor:
24VDC
Wire Feed Motor:
18VDC
Front Support:
Three Point Support included as standard
Torch Cooling:
Water cooled to electrode block
Transmission:
Current by Lamellar Coupling
Gas/Water by Rotary Coupling
Weight (with wire feed):
6kg
Weight (without wire feed):
5kg
